12 Inch Carbon Fiber Balance Bike Rim 30mm Wide Push Bike Carbon Rim

FOB Reference Price:Get Latest Price
$45.00 - $100.00 / Piece | 10 Piece/Pieces (Min. Order)
Color:
Black
Samples:
$50.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Graphic customization (Min. Order: 1 Pieces)

More

Customized packaging (Min. Order: 10 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Combo Set Offered:
0, 3, 4, 5, ≥6
Wheel Material:
Carbon fiber
Size:
12-16inches
Spoke Hole:
16-32H
Finishing:
UD/3K/6K/Marble
Place of Origin:
Fujian, China
Brand Name:
Carbonal / OEM
Model Number:
PB12-w30
Applicable Bicycle:
Road Bicycles
Braking System:
Disc Brake
is_customized:
yes
Use:
Road racing/cyclocross
Rim Type:
U shape
Weight:
95g±15
Depth:
17mm
Inner width:
26mm
Outer width:
30mm
ERD:
193mm
Brake type:
disc brake
Decal:
Customized
Warranty:
5 Years
Supply Ability
Supply Ability:
8000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
5 layers brown paper box with foam bag inside
Port
Xiamen,Fujian,China
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 40 To be negotiated
Video Description
Product Description

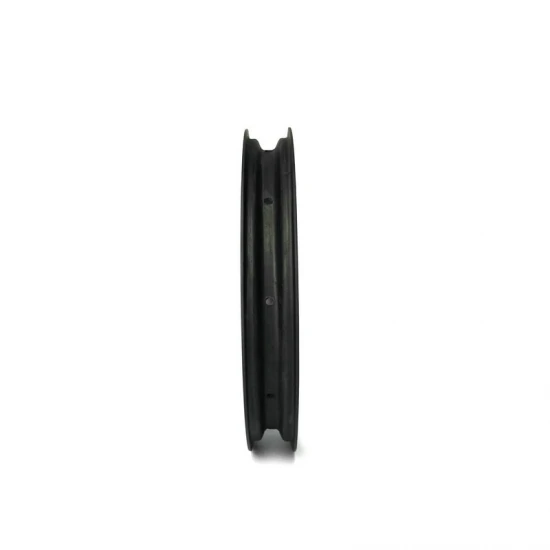

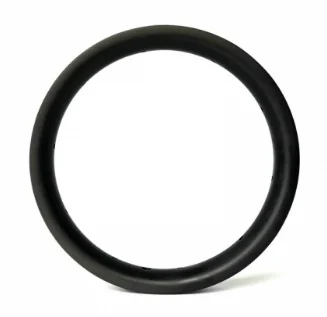

12 Inch Carbon Fiber Balance Bike Rim 30mm Wide Push Bike Carbon Rim

Item CB12-W30, weight: 95g±5, ERD 192mm. Wider 30mm width but lower 17mm deep rim profile makes this rim unmatched aerodynamic, light and stiff, excellent performance for kid balance bike, push bike.
Item No.:CB12-W30
Size:12 Inch
Material:Toray T700 Carbon Fiber
Type:Clincher
Weight:95g±5
ERD:192mm
Inner Width:26mm
Outer Width:30mm
Depth:17mm
Max Weight Limit:60kg

Wider 30mm width but lower 17mm deep rim profile makes this rim unmatched aerodynamic, light and stiff, excellent performance for kid balance bikes.



Specification:

Item: CB12-W30 Use:  Balance bike, push bike
Rim type: 12" clincher Material: Toray T700 carbon fiber
Tubeless ready: No Weight: 95g±5

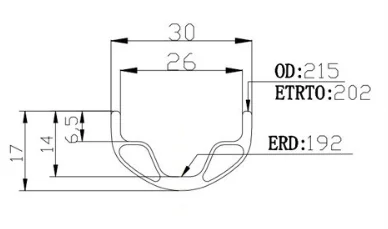

External/Internal width: 30mm / 26mm ERD: 192mm
Depth: 17mm Max weight limit: 60kgs
Weave: UD / Marble Finish: Matte, glossy
Spoke hole count: 10 or customized Assemble hole diameter: 8.5mm
Spoke hole diameter: 4.5mm or customized Valve hole diameter: 6.5mm
Max spoke tension: 140kgf (recommended 110~130kgf) Max tire pressure: 36psi (2.5bar)
Decal: Customized Warranty: 5 years
High TG resin temperature: 130°C Standard: EN standard



Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.



Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.



100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.

Detailed Images


Packaging

Warranty Policy

Carbonal conducts three separate quality controls prior to shipping to our customers. We stand behind our products with the following warranty:



1. Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase. This warranty only applies to the original owner and is not transferable. Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim. Please retain your proof of purchase for any future warranty claims.



2. If any manufacturing defect occurs within 45 days, Carbonal is obligated to replace the product and also pay for the shipping cost. If any manufacturing defect occurs within 45 days to 60 months, Carbonal is obligated to replace the products, and the customer would be resposible for the shipping cost.



This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.



Crash replacement:

We understand that accidents and damage can happen, if in case of bad luck, Carbonal supports you by offering replacement product with 15% discount on the current price of products for up to 2-years after your original purchase, and the customer would be responsible for the shipping cost.

Liability Insurance

Why choose us?

Carbonal - Carbon professional.



Xiamen Carbonal Composite Technology Co., Ltd is a manufacturing & trading corporation, partnership with CarbonKing, lead by a man who have been devoted his life to high performance carbon fiber products for more than 25 years. We specializing in carbon bicycle rims & wheels, founded in 2009, has a production line with monthly capacity of 8,000 pcs rim.



With R&D team of 21 expert engineers and 270+ workers, we are able to assist you with development of your product as well as quality testing and manufacture. We provide high quality carbon fiber rim & wheel products, do all our in-house testing in our own lab. We meet or exceed numerous national and quality standards, and quality certificates to ensure our customers’ interests. With more than 20 years of carbon composite application experiences, we assist customers to realize their design and manufacturing needs, offering OEM factory carbon rims, OEM painting design and mold design service.



We pride ourselves on our honesty, quality and integrity. And the long lasting relationships we hold with our current clientele around the globe is testament to this. We look forward to creating a new partnership with you!



Our Rim Warranty: 5 years
Our Rim Insurance: all countries

F.A.Q.

1. How long my order will be sent after payment?

   *We have enough quantity rims in stock, normally 3 days for sample order, and 25-30 days for bulk order;



2. Do you accept payment by Paypal?

   *Yes, we accept Paypal payment. Besides, bank transfer, Western Union, Credit Card.



3. What kind of tests do you do for your rims? UCI, EN, CE?

  *All our rims been tested +30% strict than EN standard. Besides, we are supporting to do UCI and other tests for your brands.



4. Does your factory offer customized paint and decal service?

  *Yes, we offer customized design and paint. Just let us know your idea or design/logo, we have very professional designer to work with you. And the pictures of the painted product will be sent for your confirmation before shipment.



5. How about your shipping? How many days I can get the packages after shipment?

  *By default, we ship all parcels with EMS air express. Carbon bicycle components are relatively large but lightweight, so they are most cost effective with EMS air express. Generally, it takes 5 - 7 days to arrive once shipped.

   If you prefer other ways of shipping (such as DHL/TNT/UPS) or your country is not included in EMS air express international line scope, please contact us and we will find out a best delivery way for you.
